H Beam
System Components
The system may consist of any or all of the following subsystems:
- H Beam Assembly Welder with MIG Welding Power Source
- H Beam Straightening System
- CNC Drilling System
Typical Requirements
- Flange Width: 250 to 1000 mm
- Web Height: 250 mm to 3000 mm
- Flange Thickness: 6 mm to 60 mm
- Web Thickness: 6 mm to 40 mm
- Length: 6mtrs to 12 mtrs
- Assembling Speed: Up to 1000 mm/min
- Travel Speed: 650 to 6500 mm/min
- Hydraulic Pressure (max): 210 bar
- Power: 8.4KW

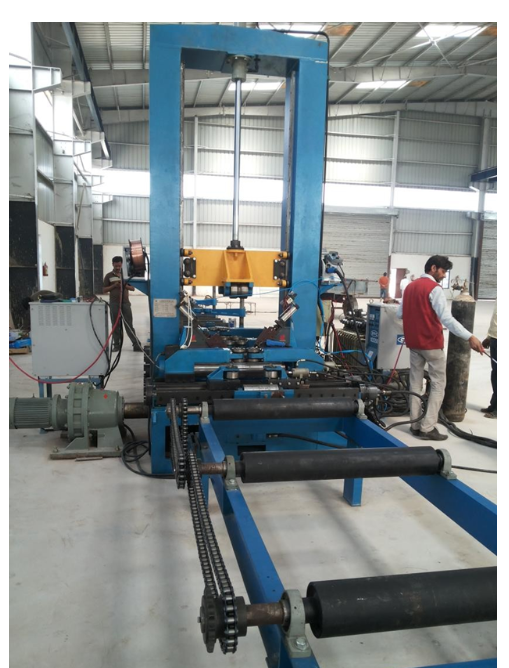

Beam Assembly and Tack Welding Equipment
The assembling machine is specially designed to form H / T beams from loose plates. During the assembly operation, the web and flange are centralized and synchronized clamping is done using hydraulic pressure. Automatic centering ensures accurate positioning of the web with flanges and consistency in maintaining the position. A wide range of sizes can be assembled in this equipment, as specified in the table below. Tack welding is done by the MIG process with time-based weld/skip weld settings. User-friendly operations ensure optimized productivity and ease of maintenance.
List of Equipment & Sub-Assemblies
| Sl. No | List of Subassemblies | Qty |
| 1 | Beam assembly equipment with web and flange centralizers and beam clamping and auto tack welding facility | 1 No |

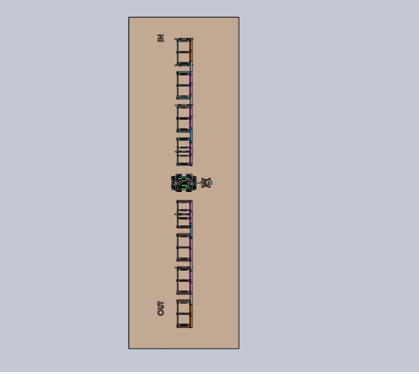

| 2 | In-feed conveyor for conveying loose web and flange plates on the in-feed side and assembled beams on the out-feed side in vertical condition | 1 No |
| 3 | Hydraulically operated web and flange centralizer on the in-feed conveyor | 1 Set – 3 Nos |
| 4 | Out-feed conveyor | 1 No |
| 5 | MIG welding power sources | 2 Nos |
| 6 | Optional 90-degree tilter | 1 Set – 3 Nos |
| 7 | Electrical control panel | 1 No |

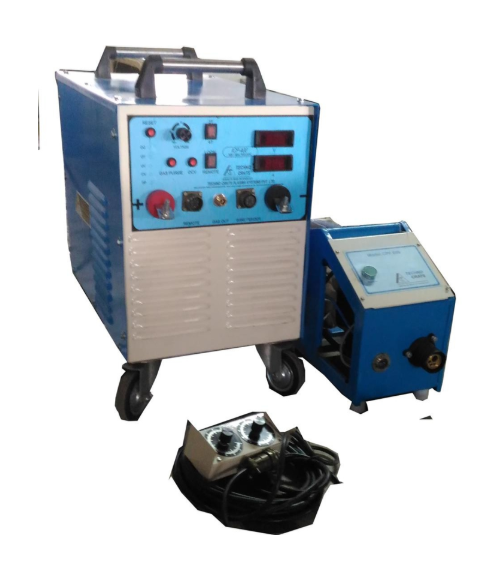

Welding Power Source

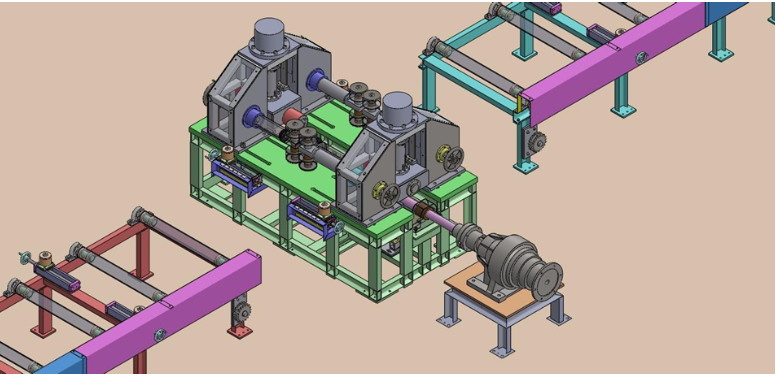

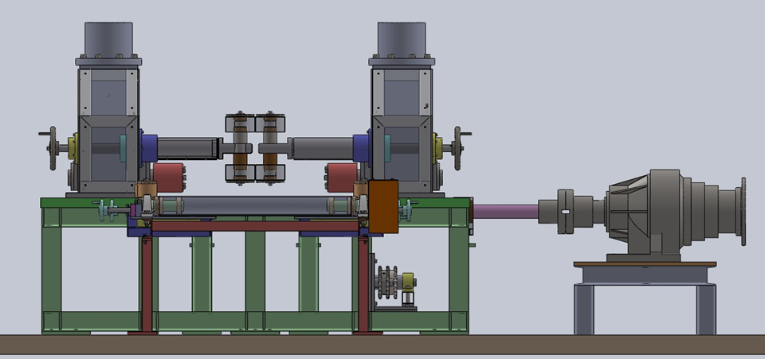

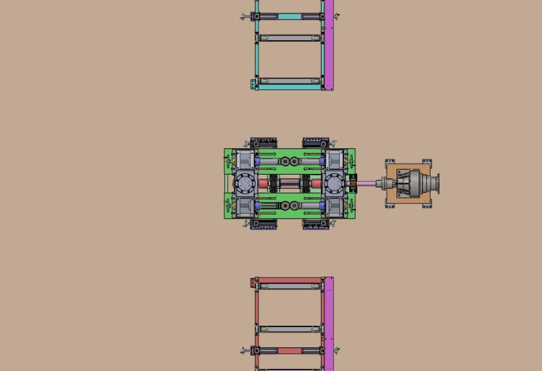

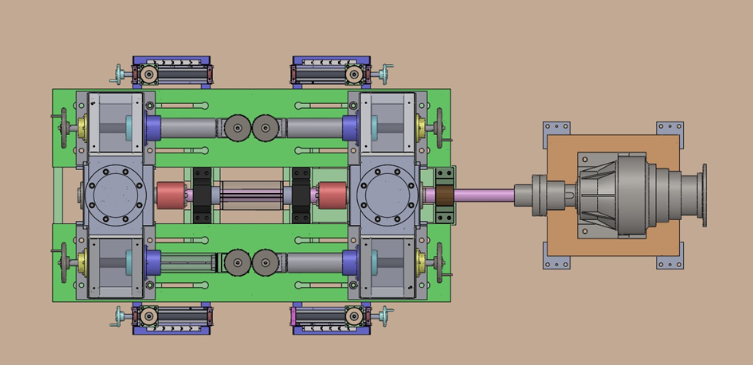

Hydraulic Flange Straightening Machine
Technical Details
- Flange Width: 200 to 1000 mm
- Web Height: 350 mm to 3000 mm
- Flange Thickness: 6 mm to 60 mm
- Web Thickness: 6 mm to 60 mm
- Length: 15 mtrs
- Straightening Speed: Up to 6 mtrs/min
Operation

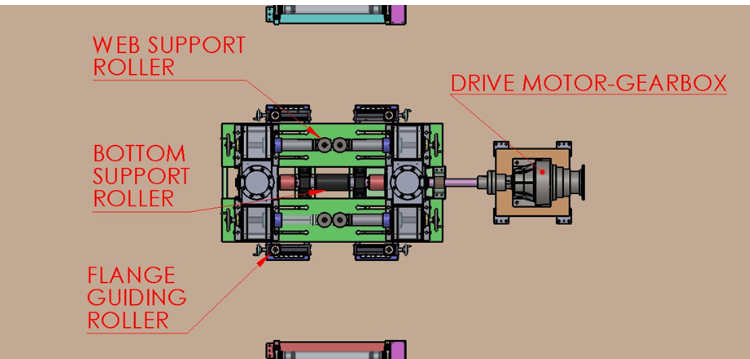

The flange straightening machine is used to straighten deformed H beam flanges. The hydraulic straightening machine has sufficient capacity to straighten a larger beam. The straightening wheel and drive roller are made of alloy steel and operated through a user-friendly device.
List of Modules
| Sl. No | List of Subassemblies | Qty |
| 1 | Hydraulic straightening machine with straightening wheels and drive rollers made of hardened alloy steel | 1 No |
| 2 | In-feed conveyor | 1 No |
| 3 | Out-feed conveyor | 1 No |
| 4 | Control panel | 1 No |
