PUMA

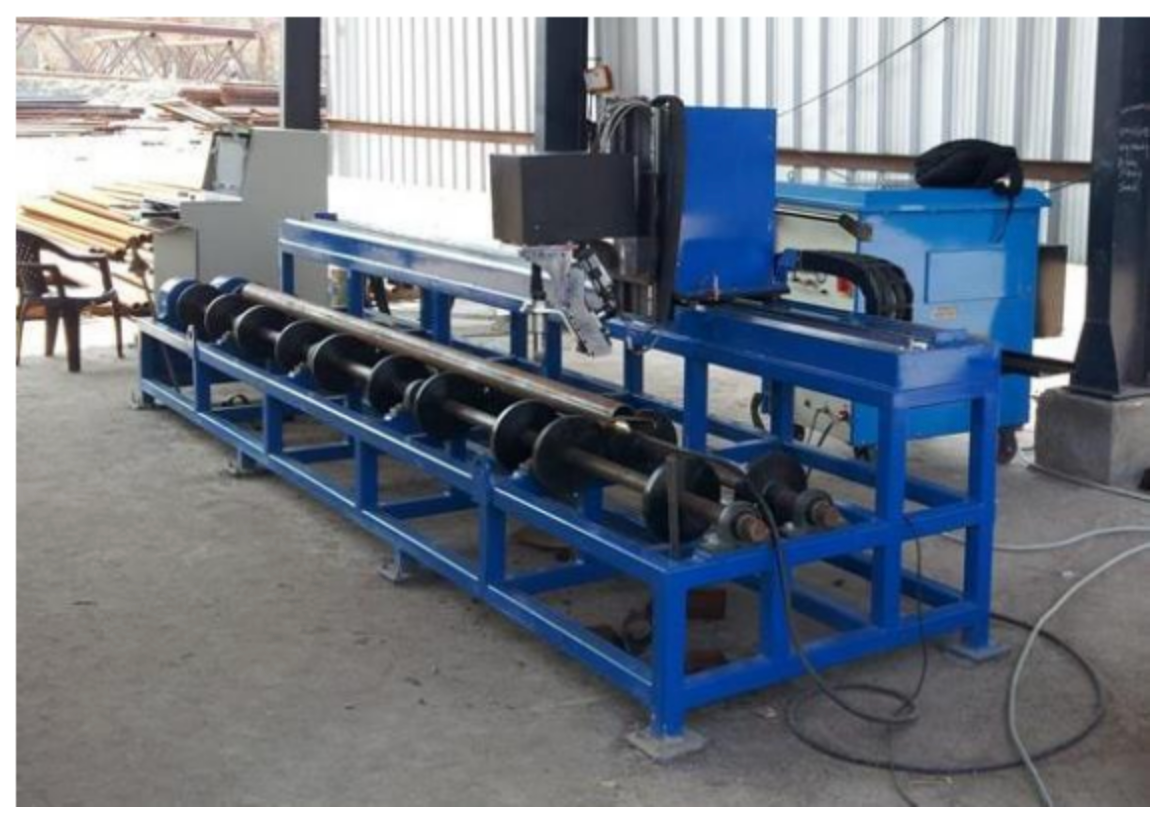

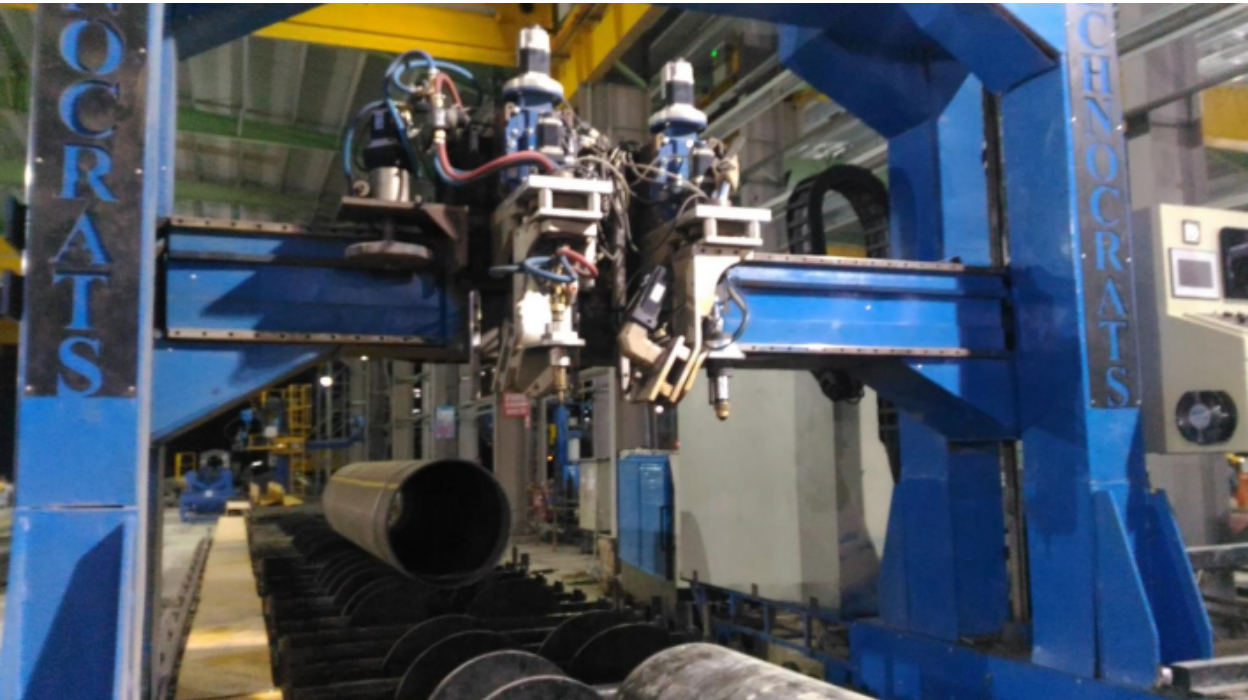

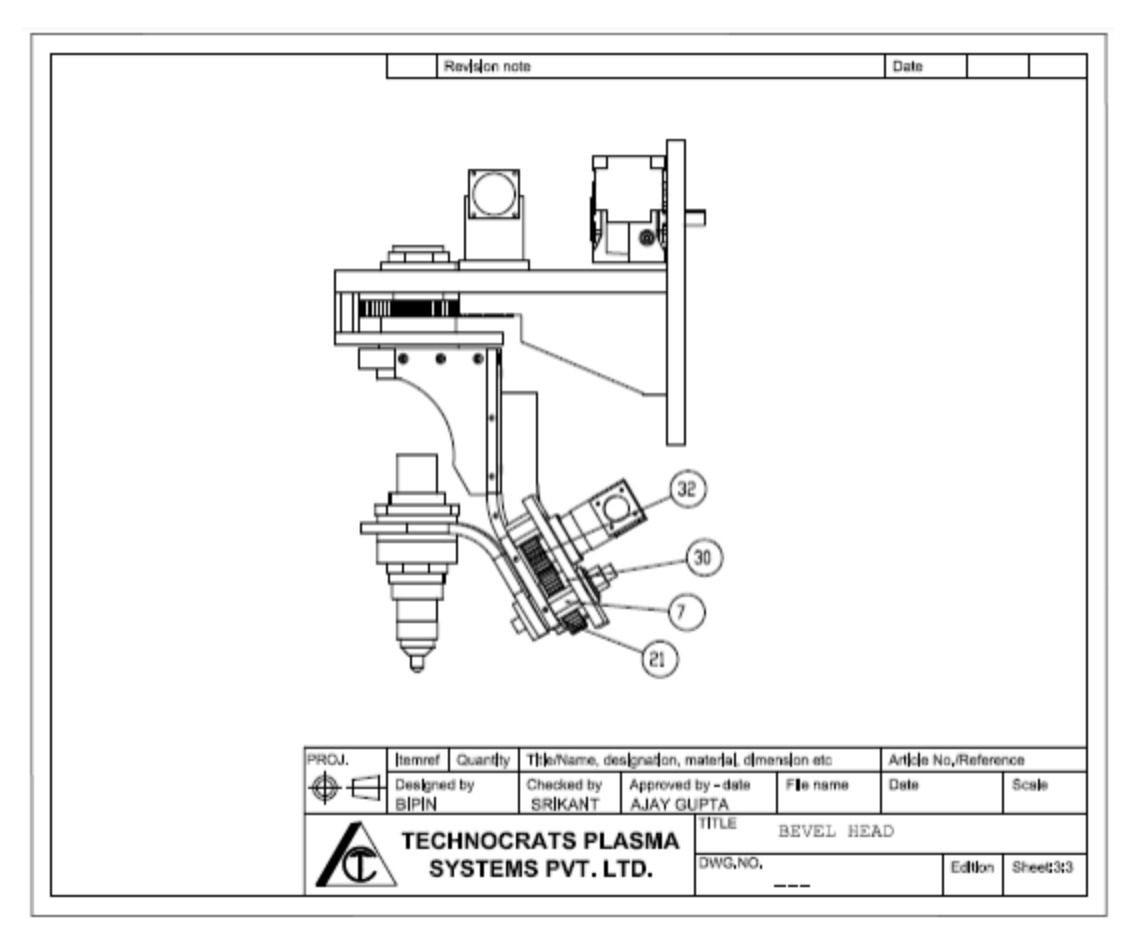

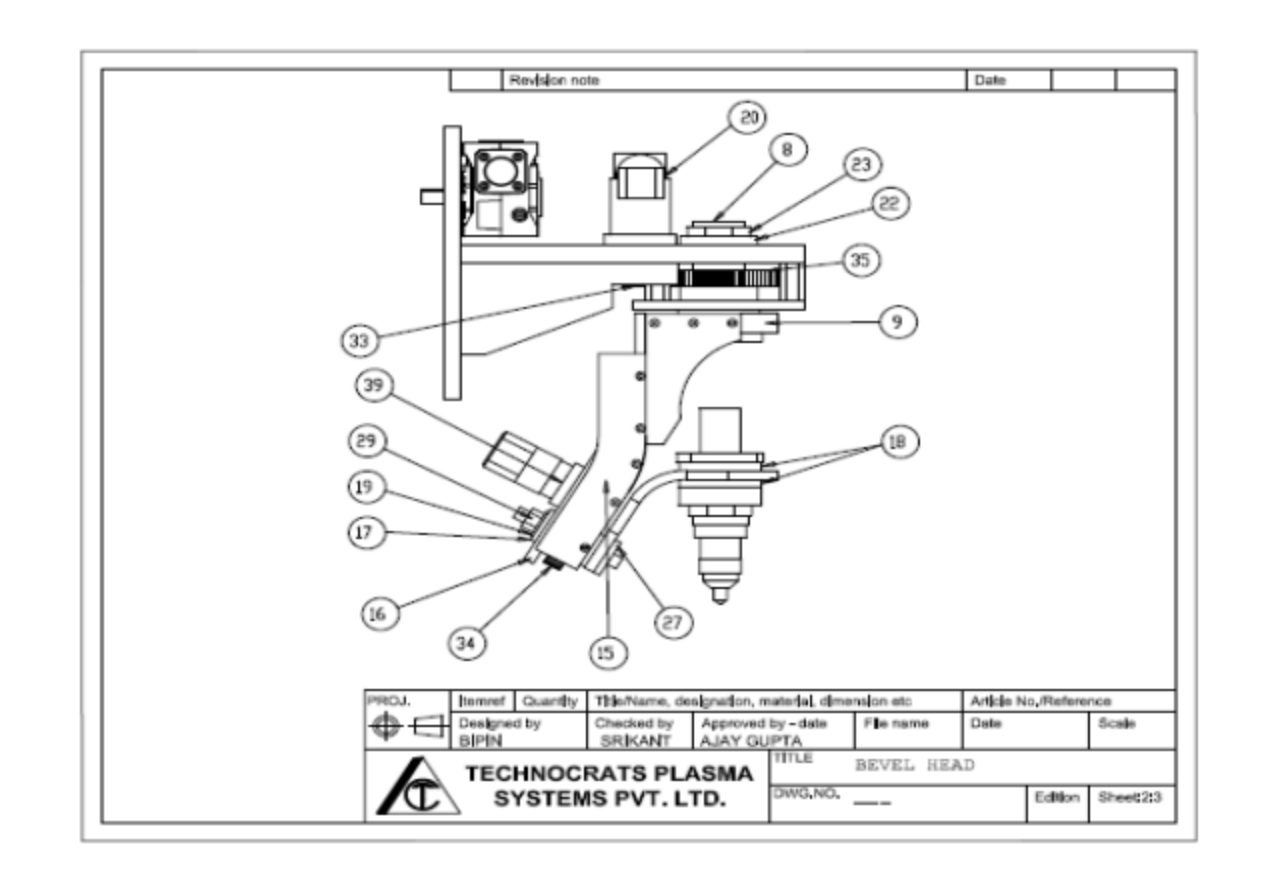

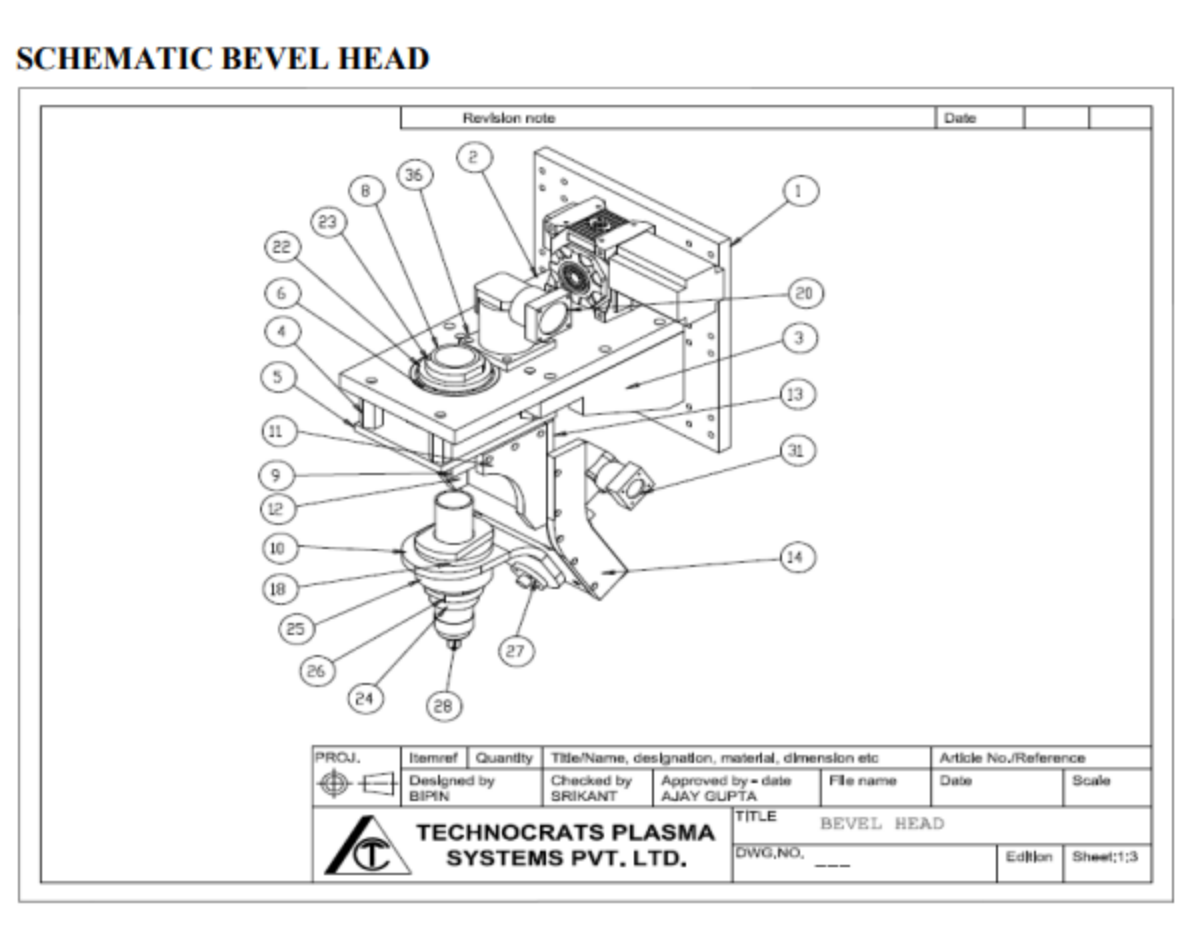

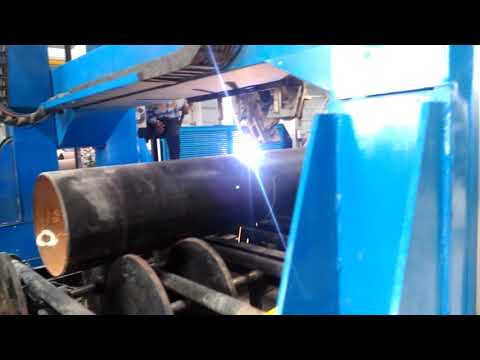

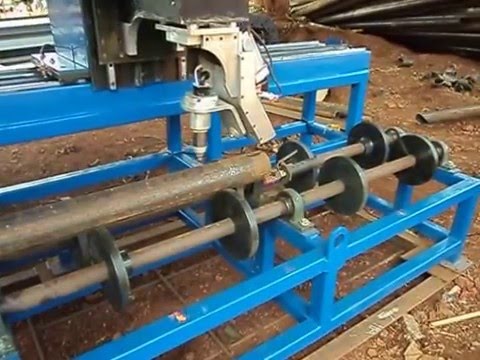

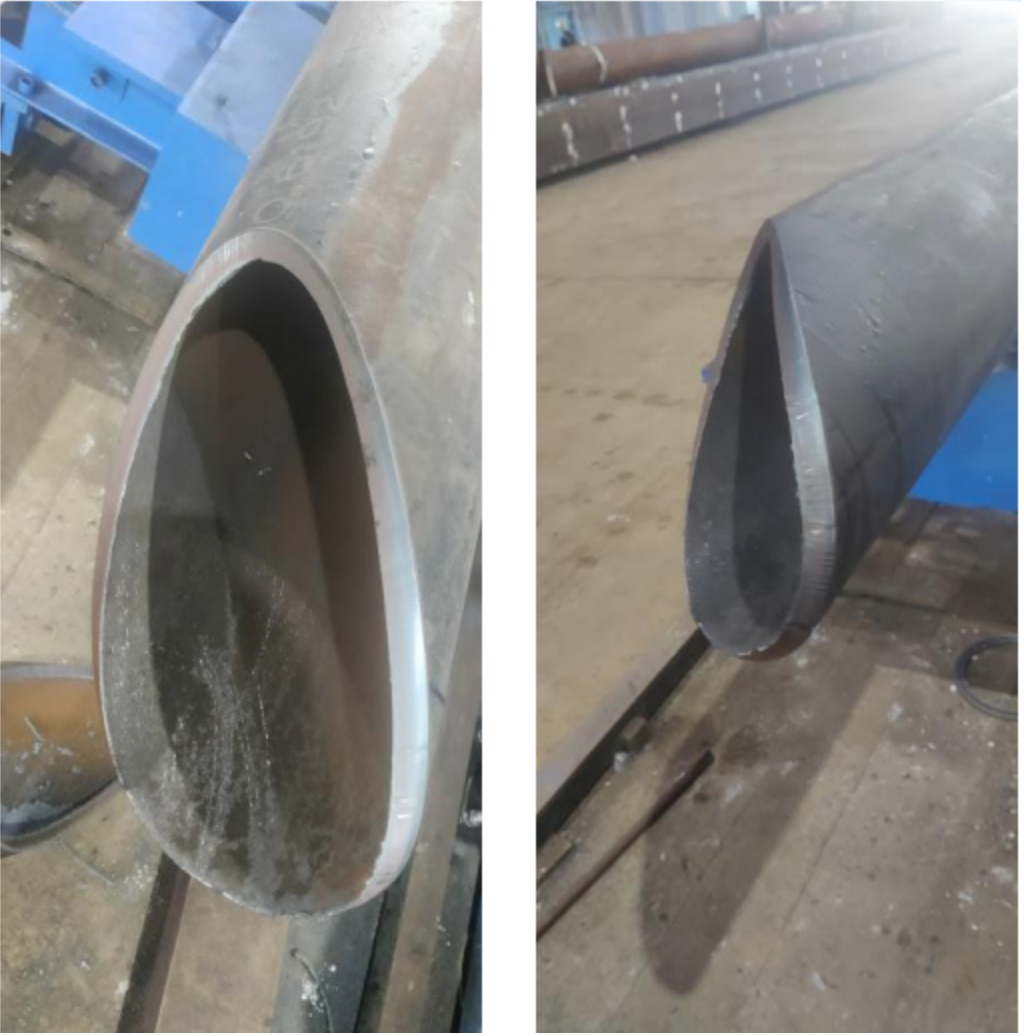

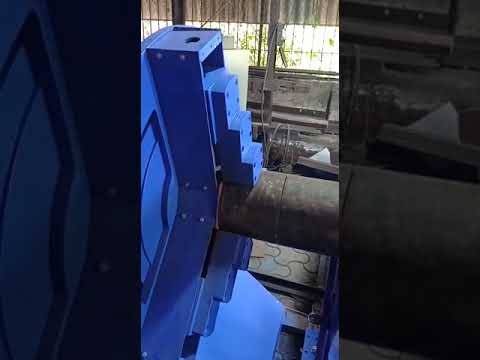

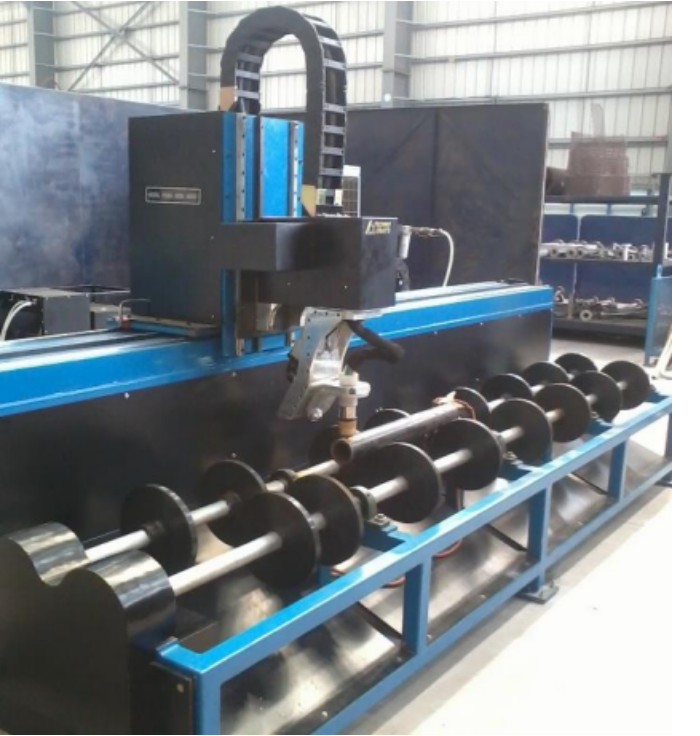

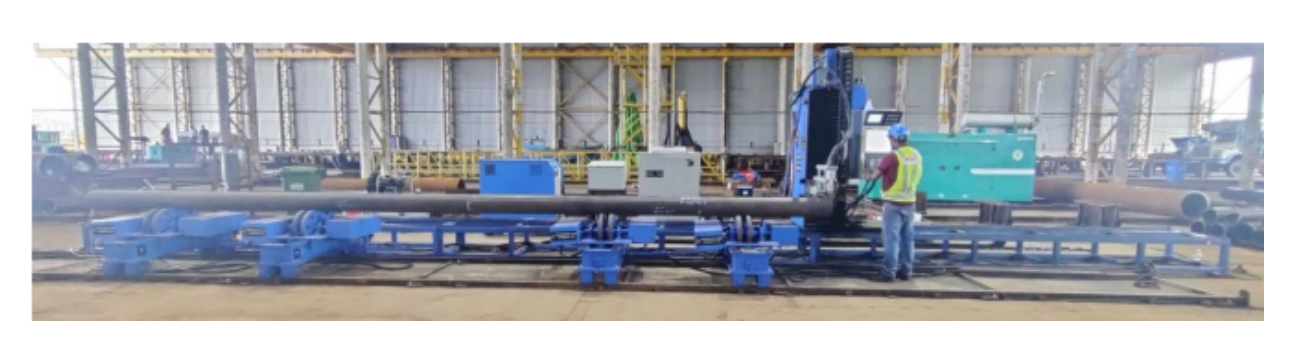

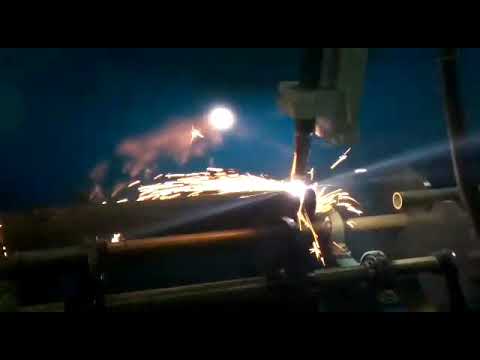

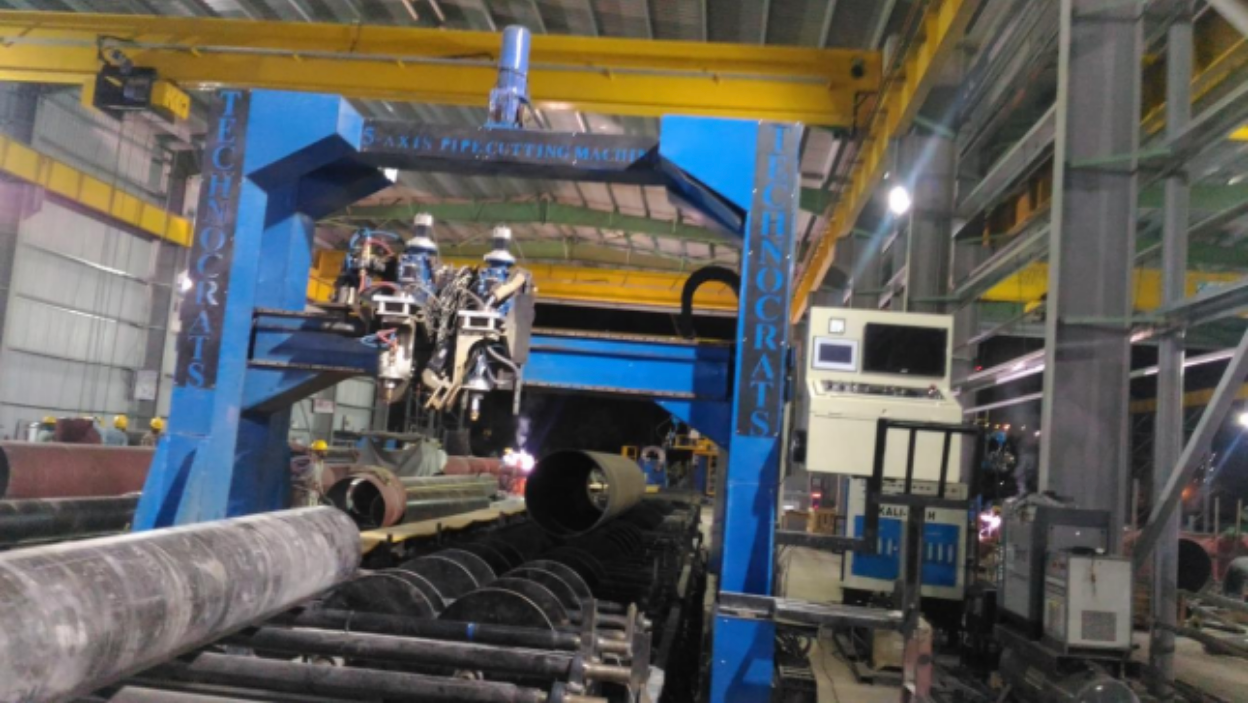

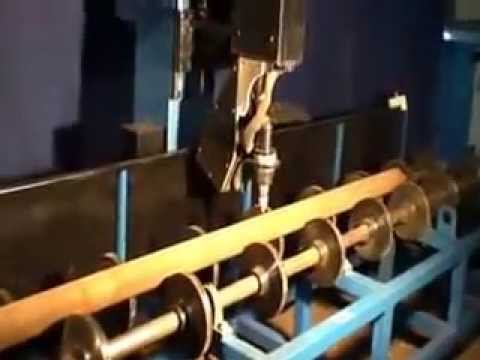

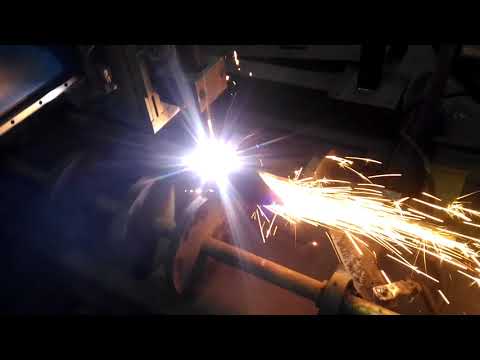

Puma is the name of our machine model for CNC PIPE PROFILE CUTTING SYSTEM. Depending on the customer's requirement / application, the machine can be configured as disc based or roller or chuck based. It can come with 3 axis (without beveling) or 5 axis (with automatic beveling arrangement) It can come with multiple torches (Plasma or OxyFuel), air cooled or water cooled.

These machines are designed and manufactured by us in India and we have sold hundreds of such machines in our 35 years of existence.

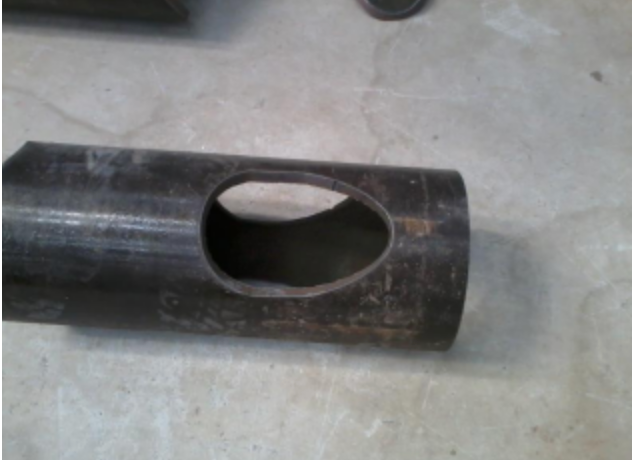

Customers generally enquire for 33 mm to 356 mm dia pipes (with 2.6 mm to 8 mm thickness) and min & max pipe lengths of say 750-5000 mm. Please note, other diameters or pipe thickness or pipe lengths are also readily possible).

Machine includes our own manufactured Plasma Power Source Model HyCUT, though the systems are standardised and compatible with other power sources if required. HyCut plasma power sources are IGBT types. HyCut 125 for instance has 10-125 amps current range with maximum output power of 20 kW and supports piercing of upto 20 mm and edge cutting of 25 mm

The machine comes with an MS frame with 3 / 5 controlled axes with independent drives / motors. Drive mechanism is generally rotary gearbox / rack & pinion / ball screw

We also provide automatic height control of plasma torch through arc voltage control (used for pipe roundness correction)

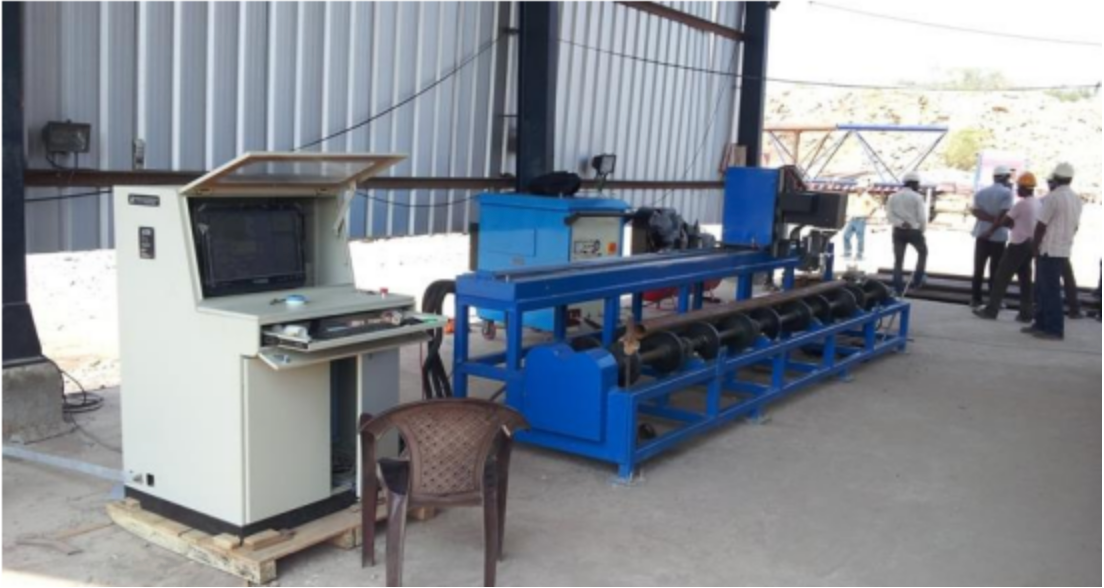

We can offer Indian / Chinese (FLMC) / Canadian controller with nesting software (AlmaCAM / iTSoft)

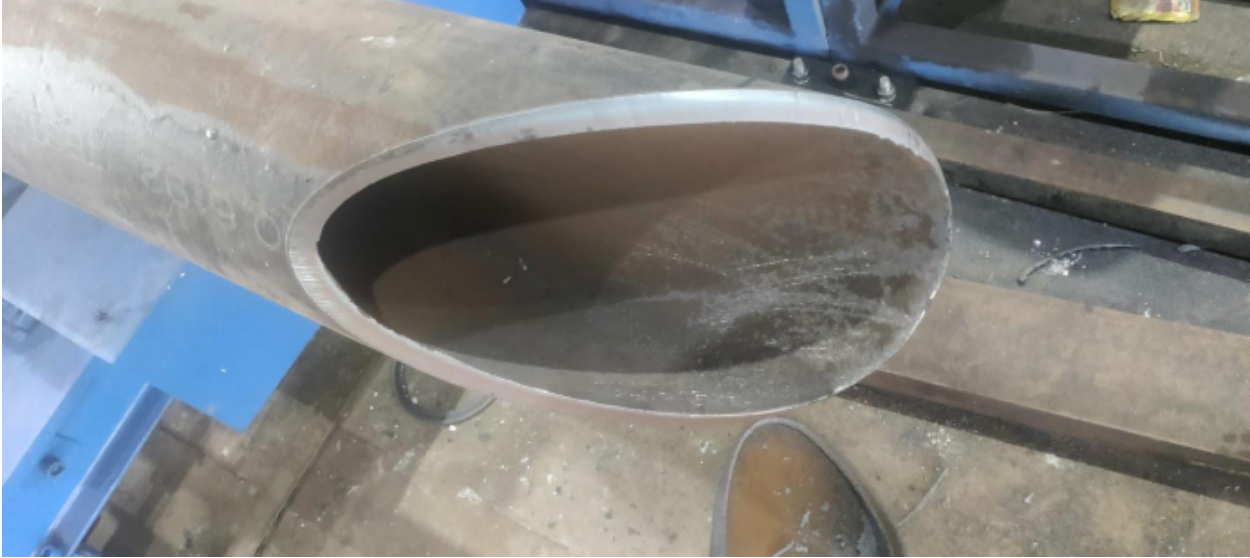

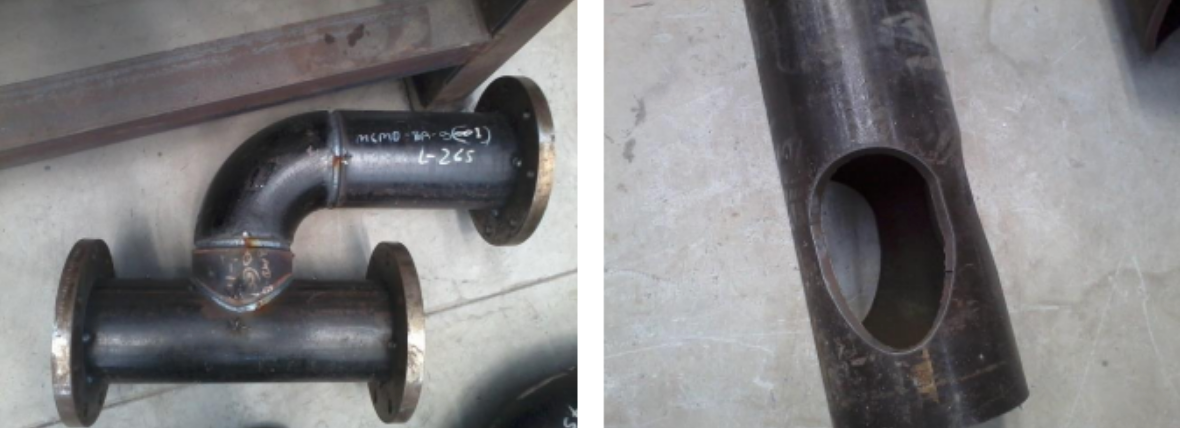

It is to be noted that weld seam will be present along the diameter of the pipe and ovality / deformity of pipe will lead cut in accuracy. Pictures are indicative and will depend on the actual design of machine as per customer requirements / specification.

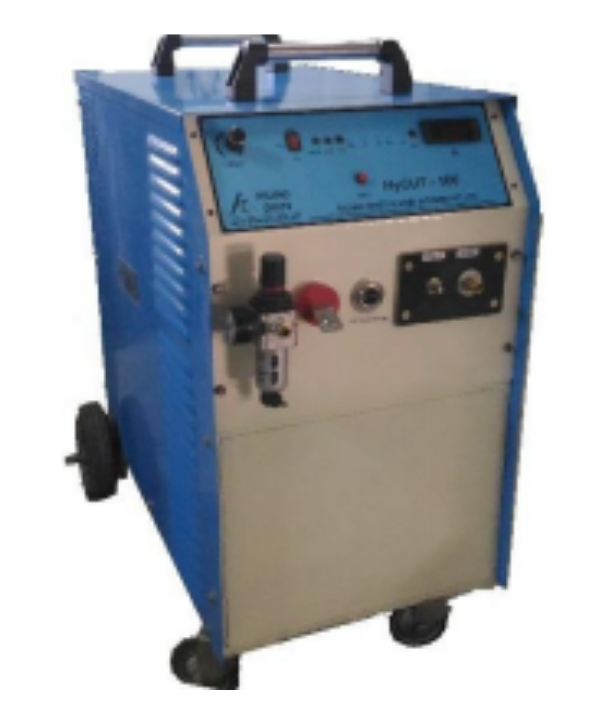

Plasma Power Source - HyCut

General Terms & Conditions:
1. P&F: 3%
2. GST: 18%
3. Transportation: To customers account / To Pay
4. Payment Terms: 50% advance along with order and 50% after inspection at our works prior to dispatch. Other payment terms can be discussed including LC
5. Dispatch: 10-12 weeks from the date of receipt of purchase order & advance. It can be expedited as per customers requirement
6. Installation & Commissioning: Installation and commissioning will be carried out by our engineer at site. Customers generally provide decent accommodation (lodging & boarding) for our team. Necessary items like tools, tackles, crane, fork lifts, etc. is arranged / provided by customers at site before visit of the engineer.
7. Training: We provide training to customer’s nominated personnel for operation and maintenance during commissioning
8. Warranty: 12 months from the date of commissioning or 18 months from the date of dispatch, whichever is earlier
