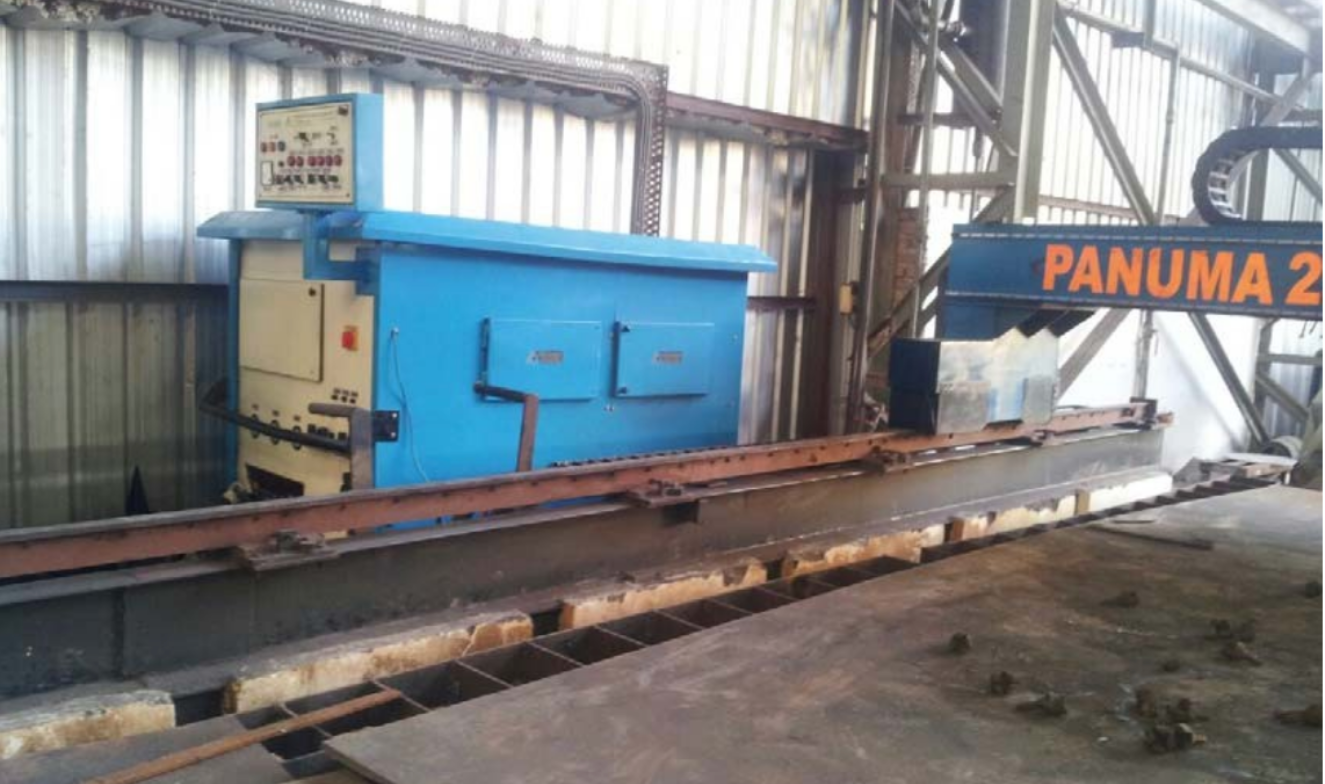

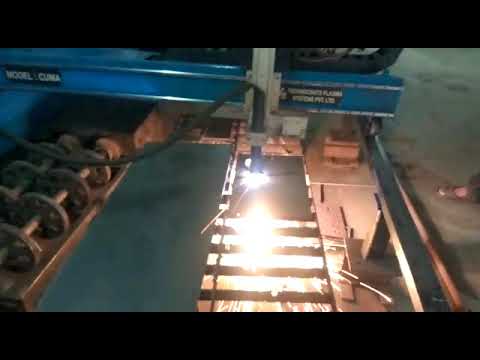

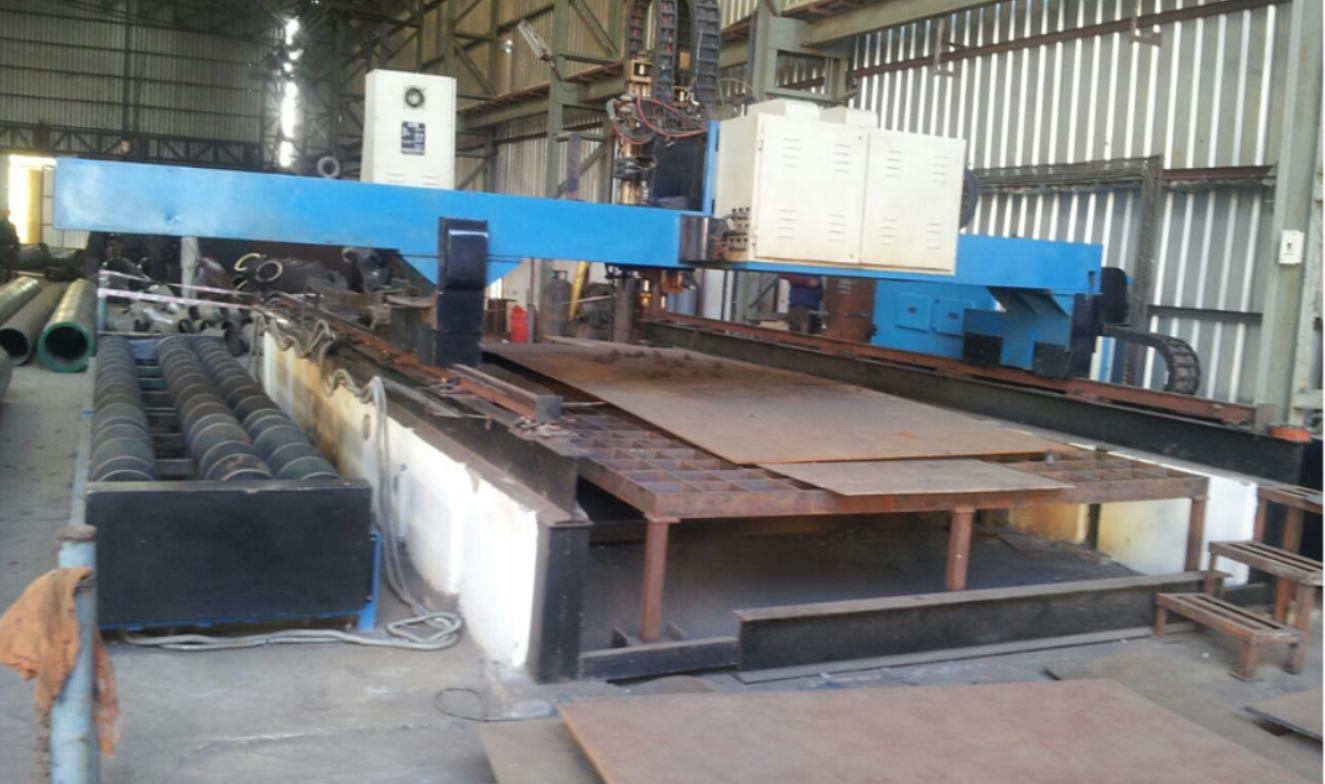

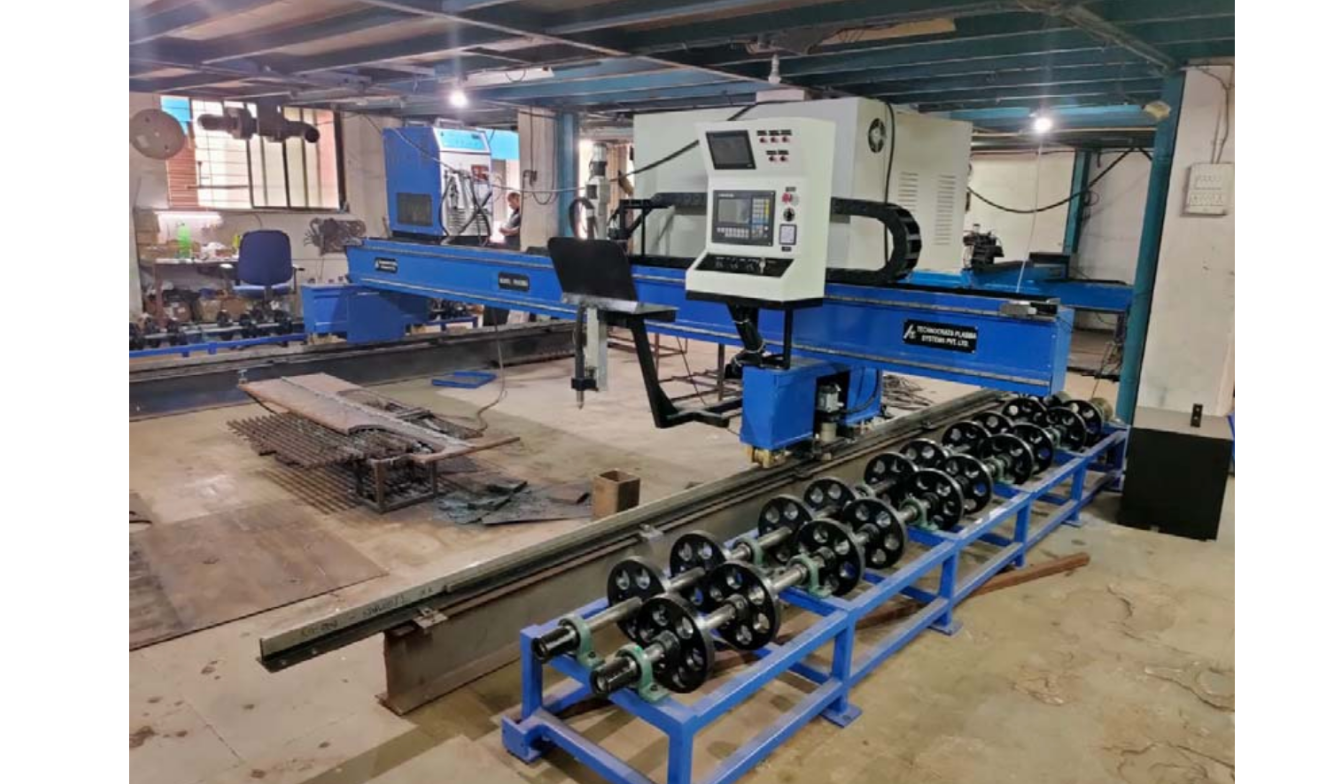

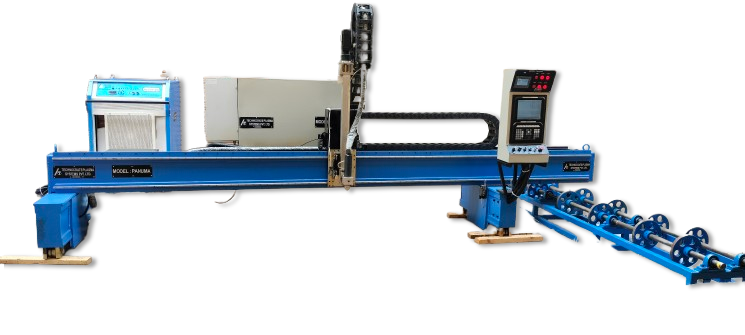

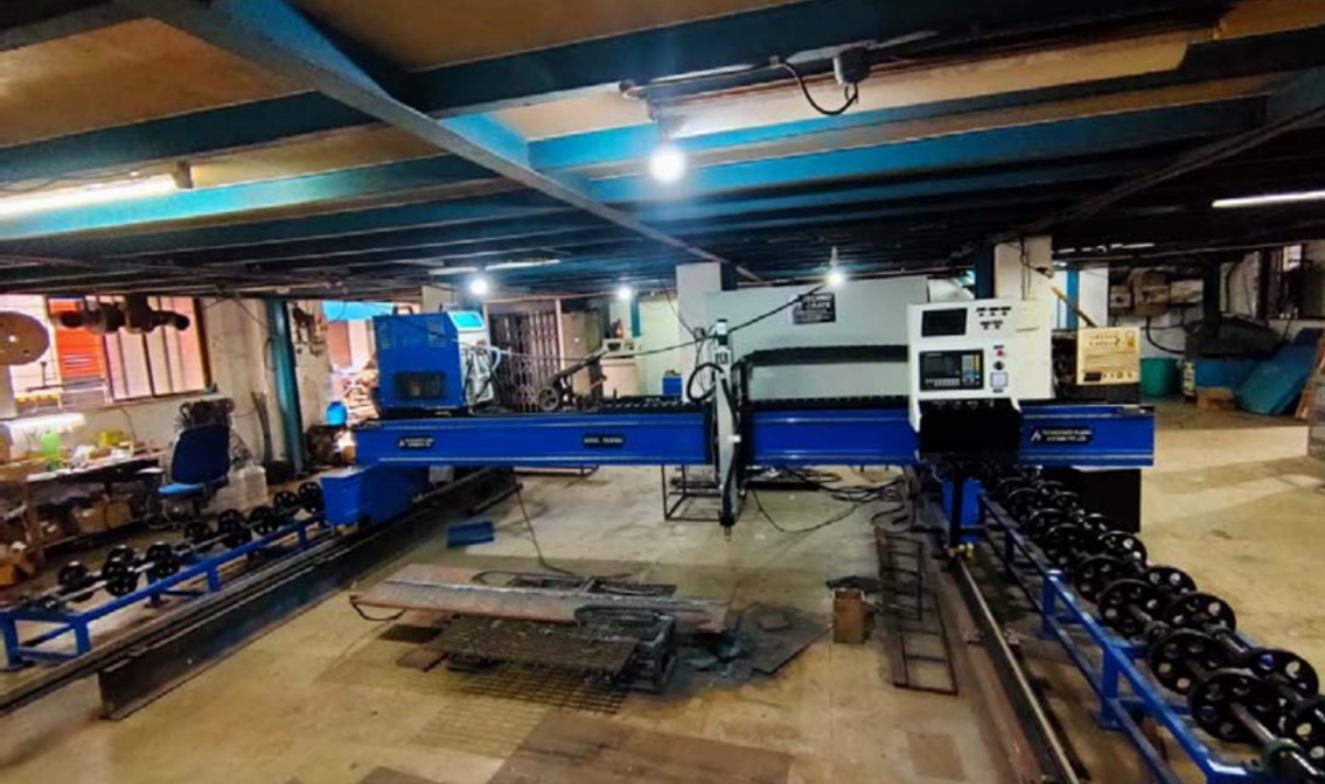

PANUMA is CNC Plate & Pipe Profile Cutting Machine
Standard machine comes for Plate size 6500 x 3000 mm and Pipe Length 6 mtr along with the following: -

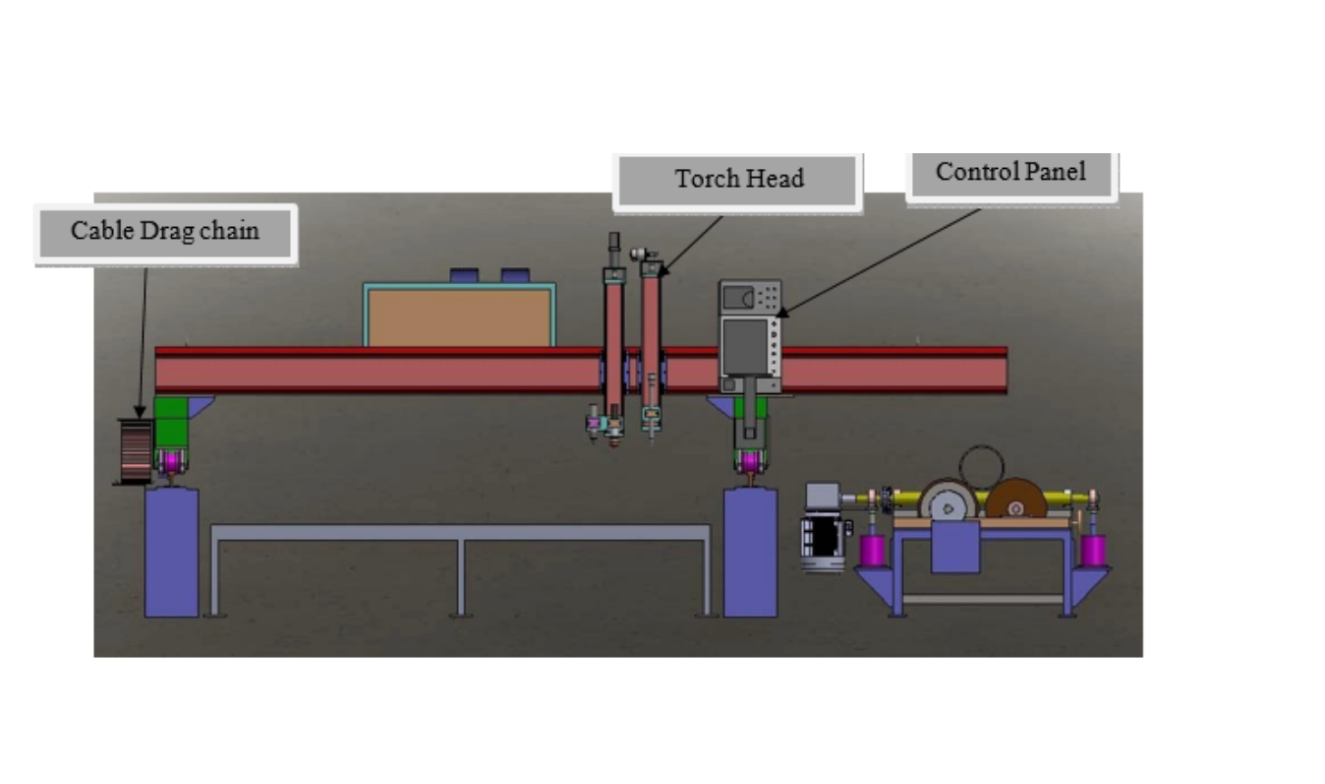

Gantry type CNC system for cutting plates and pipes.
One section of the system will be for plate cutting with Plasma and Oxyfuel torch of size 6500 x 3000 mm.

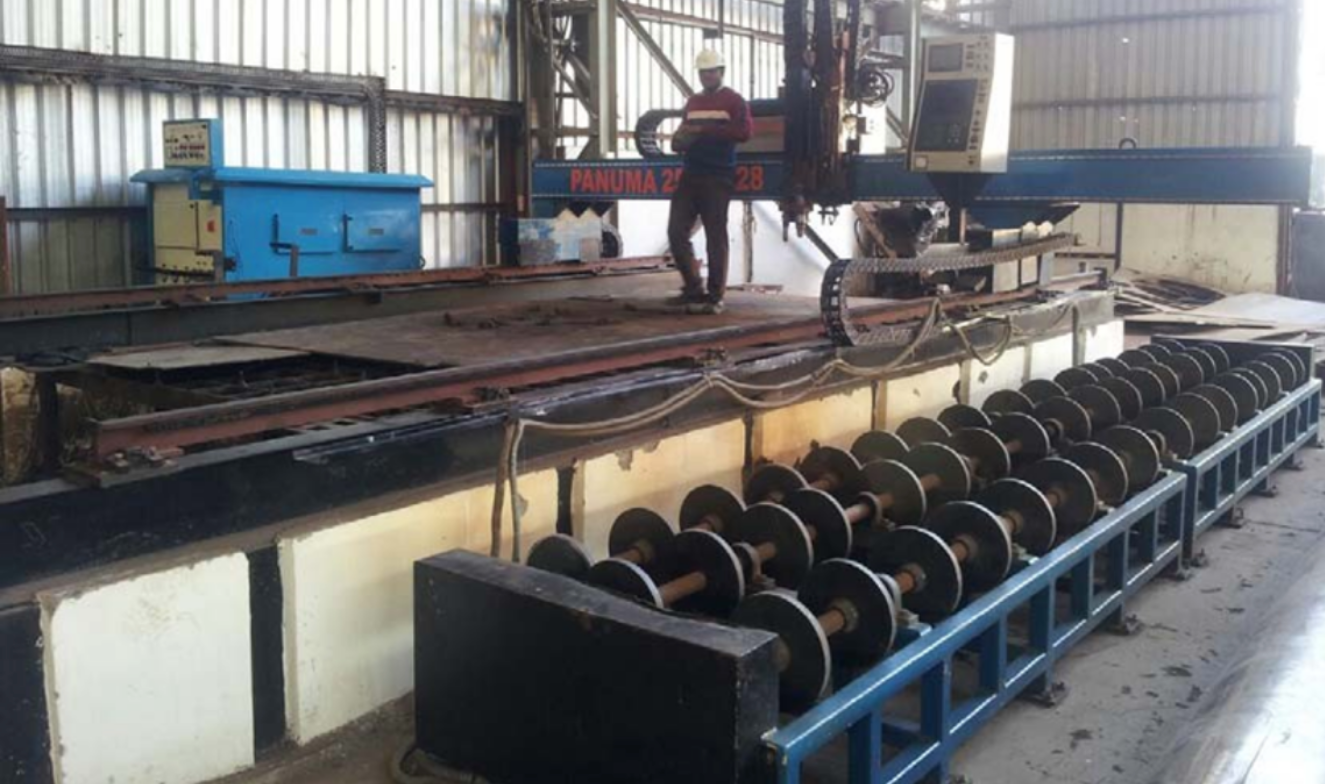

Second section will be for pipe cutting, Scissor support for holding pipes will be given for length up to 6000 mm.
Consisting of:
1. Hybrid technology Based Plasma power source Model HyCUT 125 ready for interface with CNC Controller with Air Cooled Torch of suitable length of cable.
2. Plasma cutting attachment for CNC with Initial Height Sensing & Auto Height Controller model PMT.
3. Oxy-fuel cutting attachment with capacitive auto height controller, Auto Igniter for torch. – 1No.
4. Pipe supporting system for pipe cutting.

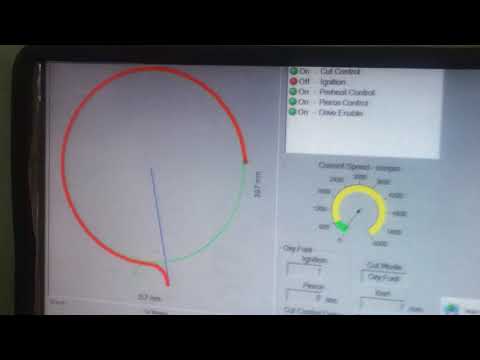

5. CNC Controller
6. Nesting Software – Most2D
7. Pipe Unfolding software for Pipe cutting
8. Installation, Commissioning of the CNC system and Training by our engineer to the nominated personnel at site for a period of 4 days
TECHNICAL DETAILS:
| Type of machine | PANUMA |
| Circular Pipe Cutting | HyCUT 125 |
| Current range | |
| Max. pipe dia. | 500 mm |
| Min. pipe dia. | 60 mm |
| Max. pipe length | 6 mtr |
| Max. pipe thickness | 4 mm to 14 mm |
| Plate Cutting | |
| Cutting Length | 6500 mm |
| Cutting Width | 3000 mm |
| Maximum Plate thickness for plasma cutting | 20 mm |
| Cutting capacity with Oxyfuel | 5 to 150 mm |
| BOTH IN COMMON | |
| No of torches | 1 no. Plasma + 1 no. Oxyfuel |
| Structure material | Hardened and ground rail, specially designed guides, MS Frame |
| No. of controlled axes with independent drives | X axis- 1 no. Y axis- 1 no. Z axis- 1 no. (torch up-dn movement) |
| Drive mechanism | AC Servo motors & drives |
| Height control | Initial Height sensing & Auto height control (For Plasma) Model PMT & Capacitive Auto Height Control (For Oxy Fuel) |
| CNC controller make | Flangling / equivalent |
| AC Servo motors | X axis- 2 nos. Y axis- 1 nos. Z axis – 1 nos. for Plasma Z axis – 1 nos. DC Motor for Oxy Fuel |
| Cable conveyors | Cable drag chain system |
Critical items and make:
| Sr. no | Description | Make |
| 1 | Rack | KHK |
| 2 | Pinion | KHK |
| 3 | LM guides | Hiwin |
| 4 | Gearbox | Apex |
| 5 | Controller | Flangling or equivalent |
| 6 | Servomotor & drive | Panasonic |
| 7 | Arc voltage torch height control | Technocrats |
| 8 | Plasma power source | Technocrats |
| 9 | Capacitive Height Controller | Wuxi Longteng |
| 10 | Oxy Fuel Torch | Wuxi Longteng |
| 11 | Limit switches | Teknic |
| 12 | Relay card | Omron |
| 13 | SMPS | Meanwell |
| 14 | Cables | Avocab |
| 15 | Relays | Omron/ PLA |
| 16 | Cable Drag chains | IGUS/ Teknic |
| 17 | Nesting software | Kartik CAD/CAM |

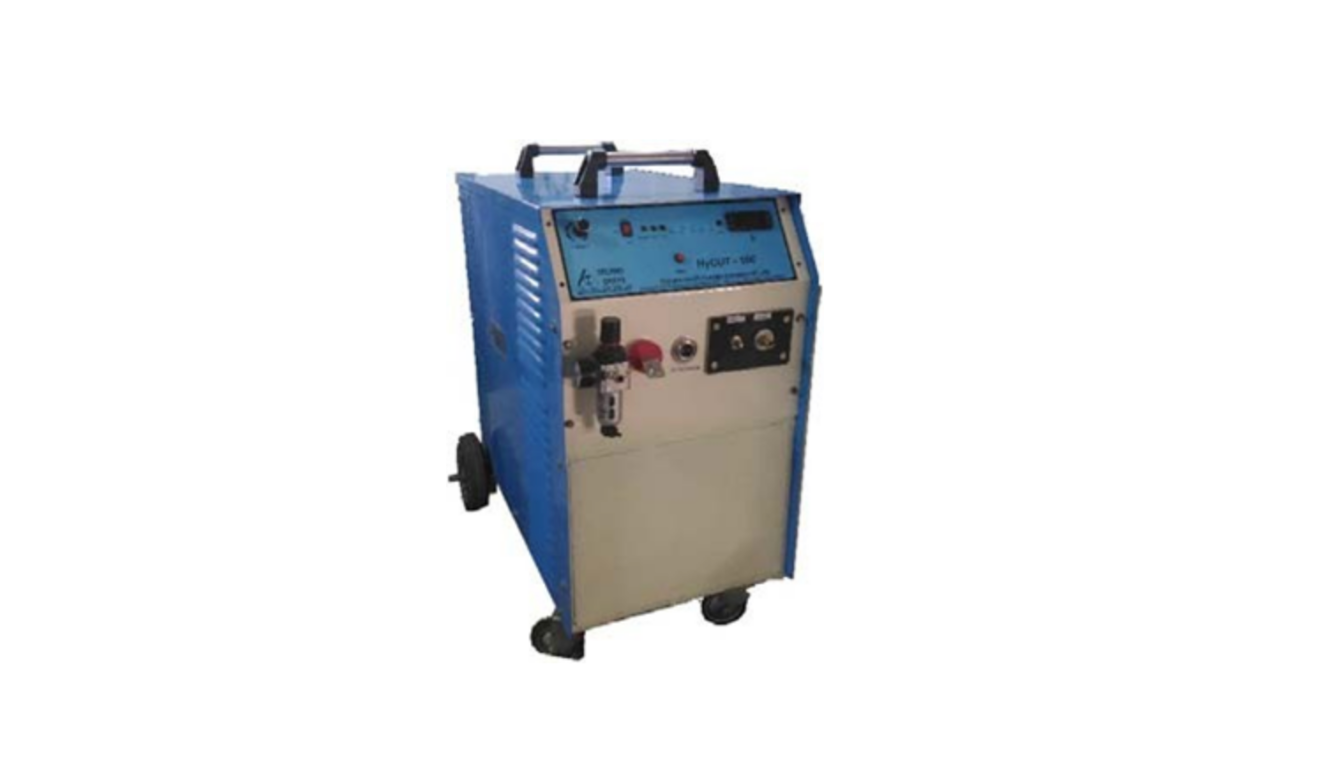

Plasma source details – HyCUT 125
| Plasma source type | IGBT type |
| Model | HyCUT 125 |
| Current range | 10 – 125 amps |
| Maximum output power | 20 kW |
| Torch cooling | Air cooled |
| Cutting capacity | Piercing – 16 mm Edge cutting – 25 mm |
